Y-02 - Classic Stainless Steel Round Tube Railing Post
Model Y02 is a classic stainless steel round tube railing post designed for glass railing systems and architectural guardrails. Its cylindrical profile provides a versatile and timeless appearance for residential, commercial and interior railing applications.
Classic Stainless Steel Round Tube Railing Post – Model Y02
Model Y02 is a classic stainless steel round tube railing post designed for glass railing systems and architectural guardrails. Its cylindrical profile provides a versatile and timeless appearance for residential, commercial and interior railing applications.
Product Overview
Manufactured from stainless steel 304 or 316L, Model Y02 is available with matte/brushed or polished surface finishes. It is designed for 12–18 mm glass and can be customized to accommodate different project requirements.
The round tube profile can be adapted in terms of post height, tube dimensions, wall thickness and mounting configuration. Floor mounting, side/fascia mounting and embedded installation can be developed according to the project conditions.
Key Features
- Classic round tube stainless steel railing post
- Stainless steel 304 / 316L
- Suitable for 12–18 mm glass
- Matte/brushed and polished finishes
- Custom tube dimensions, height and wall thickness
- Floor, side/fascia and embedded mounting options
- Suitable for indoor and outdoor applications

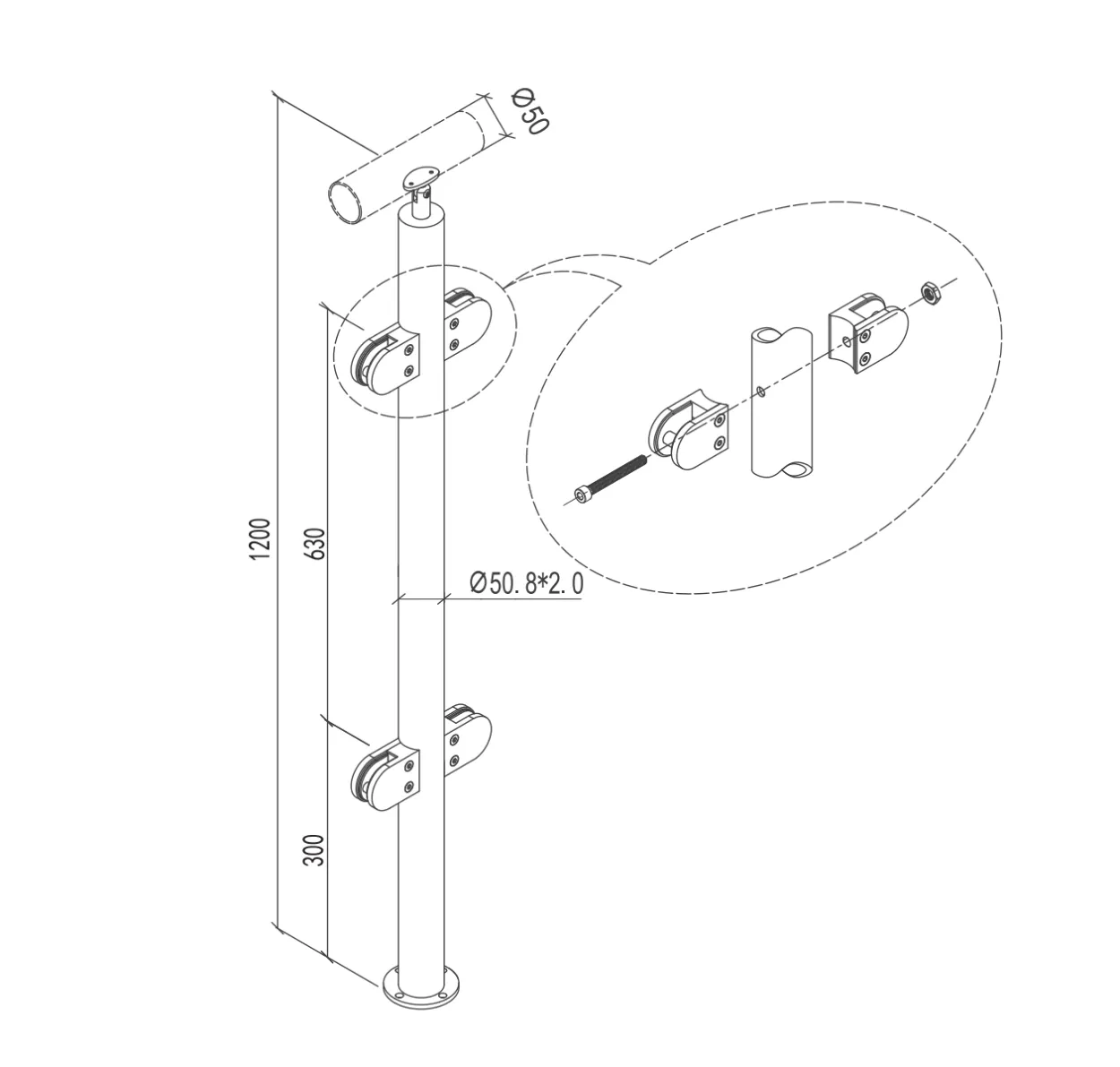

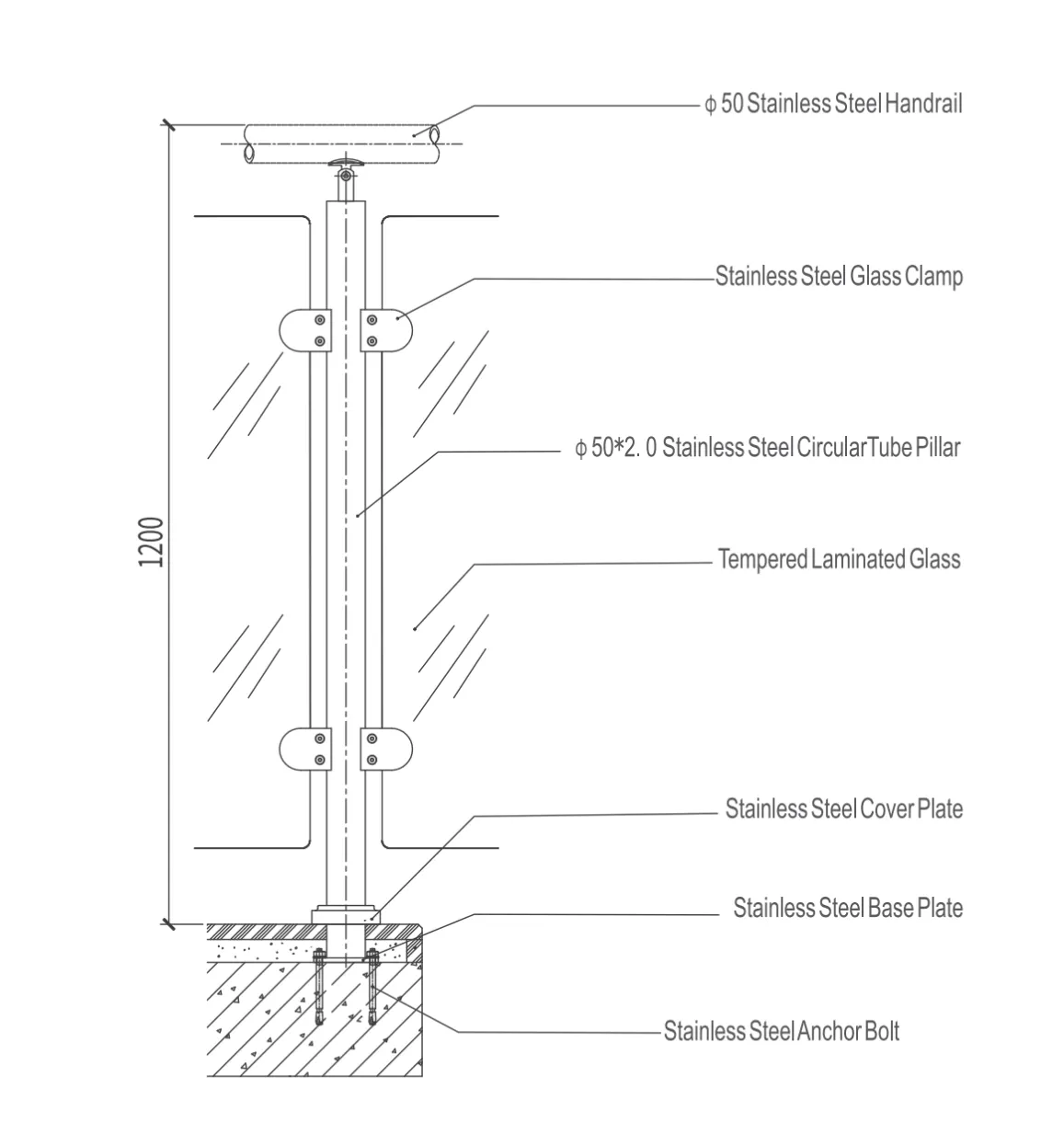

Technical Specifications
| Model | Y02 |
| Product Type | Stainless Steel Round Tube Glass Railing Post |
| Material | Stainless Steel 304 / 316L |
| Finish | Matte / Brushed / Polished |
| Glass Thickness | 12–18 mm, customizable |
| Mounting | Floor / Side / Embedded |
| Dimensions | Customizable |
Custom Design & Load Calculation
Model Y02 can be developed according to project-specific architectural and structural requirements. Customers can provide railing drawings, glass specifications, dimensions, installation conditions and design loads for technical evaluation.
Newkin Material can assist with customized product design and project-specific load calculations based on the available design parameters. Tube diameter, wall thickness, post height, mounting configuration and other relevant details can be adjusted according to the intended application.
Applications

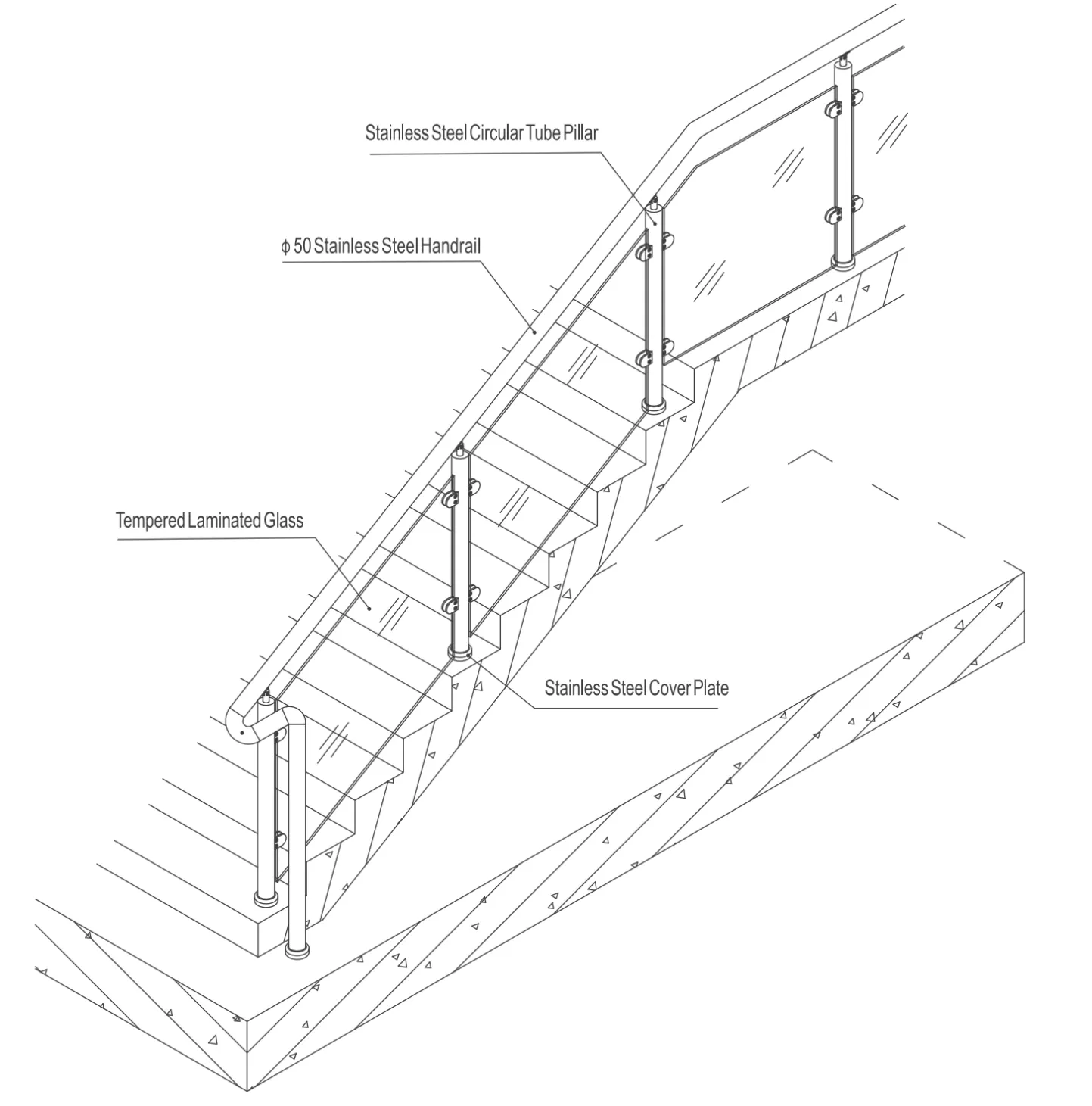

- Balcony glass railings
- Staircase guardrails
- Terrace and deck railings
- Garden and courtyard railings
- Interior architectural railings
- Residential and commercial projects
Need a Custom Round Tube Railing Post?
Share your project drawings, dimensions or technical requirements with us for customized design and quotation.
Contact Us for Custom Design
