204 - Stainless Steel Glass Railing Post
Model 204 is a versatile stainless steel glass railing post for architectural railing systems. Manufactured from stainless steel 304 or 316L, it combines a durable metal structure with flexible project customization for different glass railing applications.
Stainless Steel Glass Railing Post – Model 204
Model 204 is a versatile stainless steel glass railing post for architectural railing systems. Manufactured from stainless steel 304 or 316L, it combines a durable metal structure with flexible project customization for different glass railing applications.
Product Overview

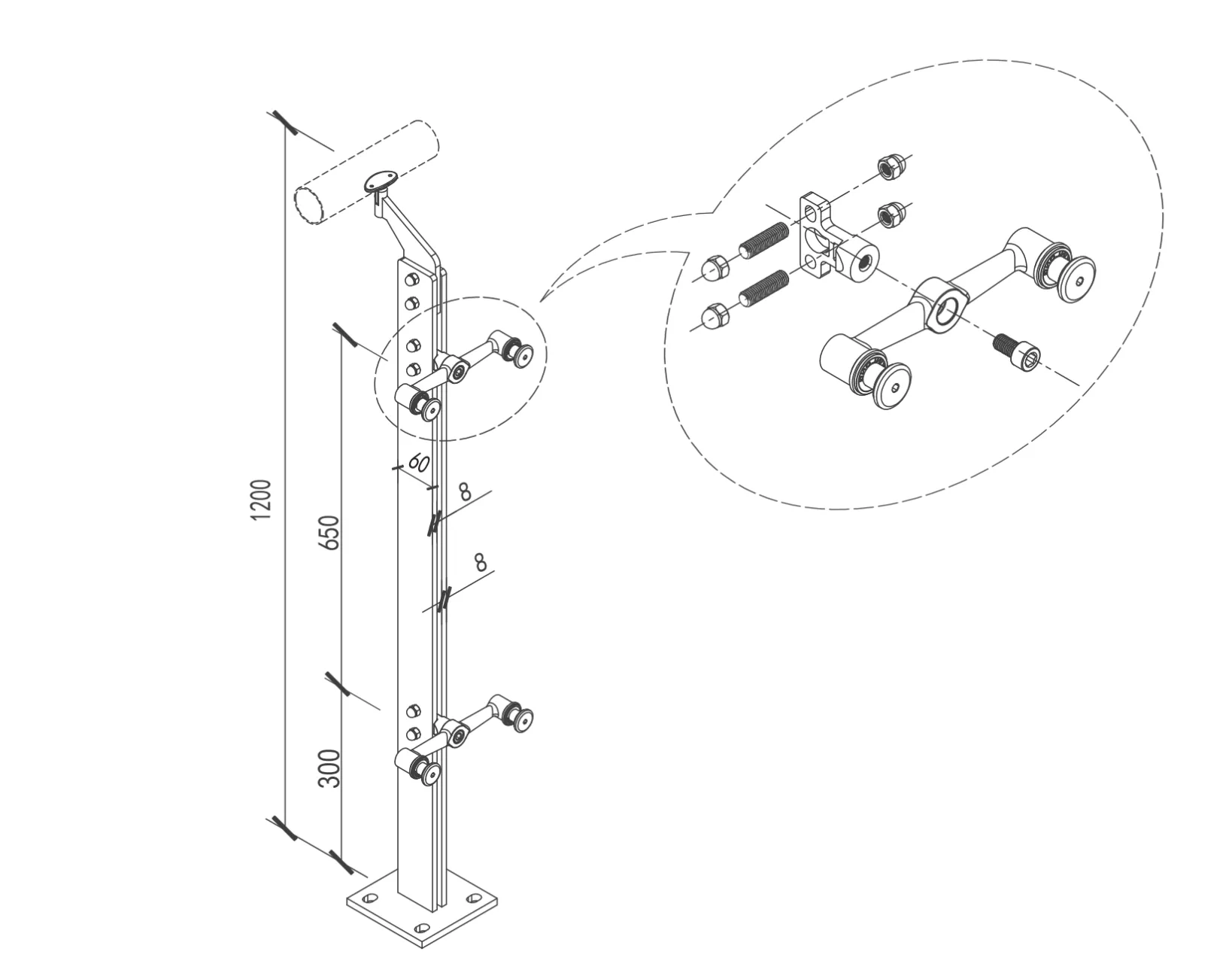

The Model 204 railing post is suitable for 12–18 mm glass and can be supplied in matte/brushed or polished stainless steel finishes. Both the post dimensions and installation configuration can be adjusted according to project requirements.

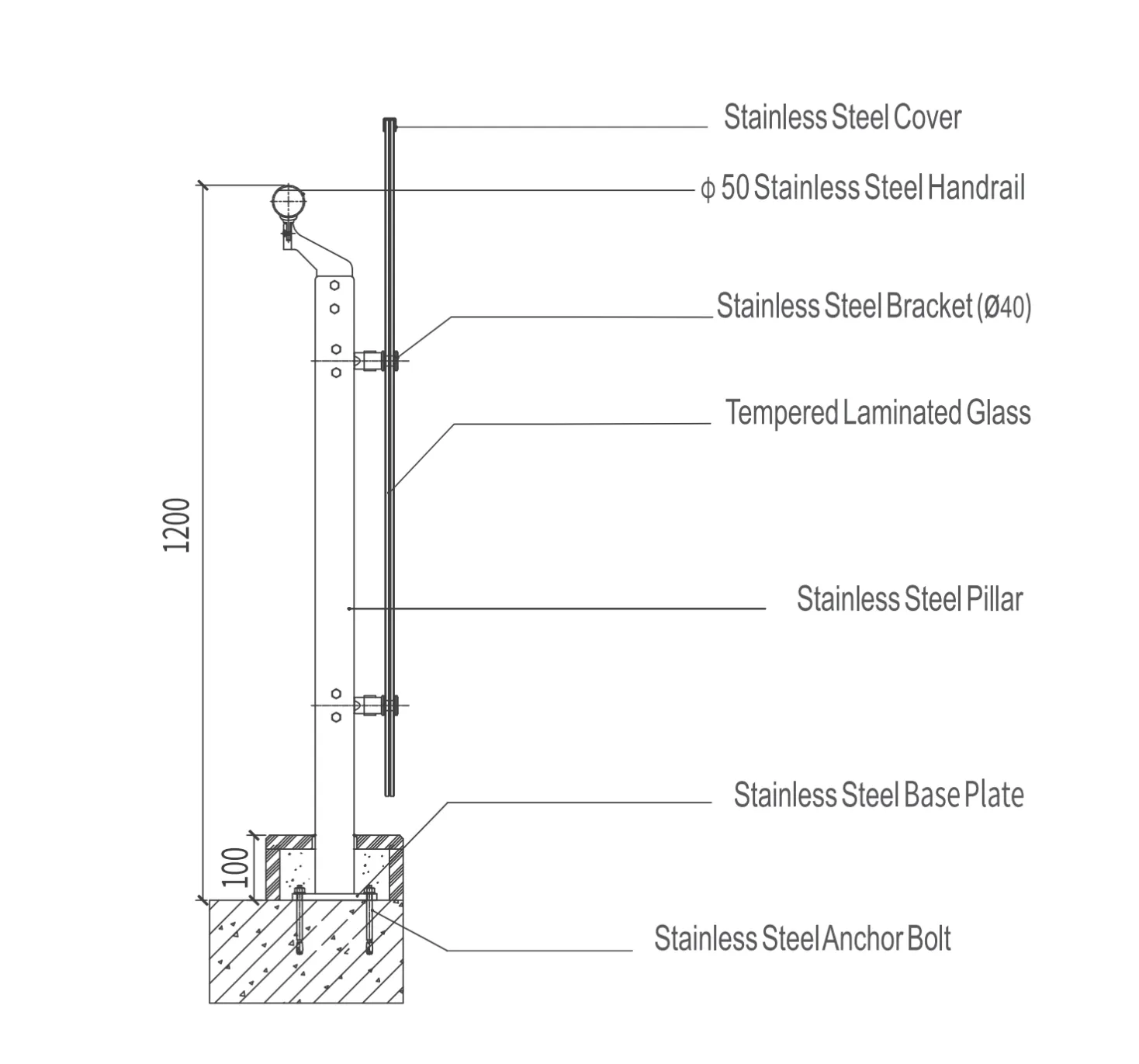

It can be configured for floor mounting, side/fascia mounting or embedded installation. This flexibility makes the model suitable for projects with different substrate conditions and architectural layouts.
Key Features
- Stainless steel 304 or 316L
- Suitable for 12–18 mm glass
- Matte/brushed or polished finish
- Custom post height and thickness
- Multiple mounting configurations
- Indoor and outdoor applications
- Project-specific design and engineering support
Technical Specifications
| Model | 204 |
| Product Type | Stainless Steel Glass Railing Post |
| Material | Stainless Steel 304 / 316L |
| Finish | Matte / Brushed / Polished |
| Glass Thickness | 12–18 mm, customizable |
| Mounting | Floor / Side / Embedded |
| Dimensions | Customizable |
Custom Engineering for Railing Projects
Newkin Material provides project-based customization rather than limiting customers to fixed standard dimensions. Based on architectural drawings and project requirements, the railing post can be adapted to different dimensions, glass specifications, mounting conditions and finishes.
For projects requiring additional technical evaluation, we can assist with project-specific product design and load calculations based on the relevant design parameters. This service is intended to help customers develop a railing component configuration suitable for their specific application.
Applications

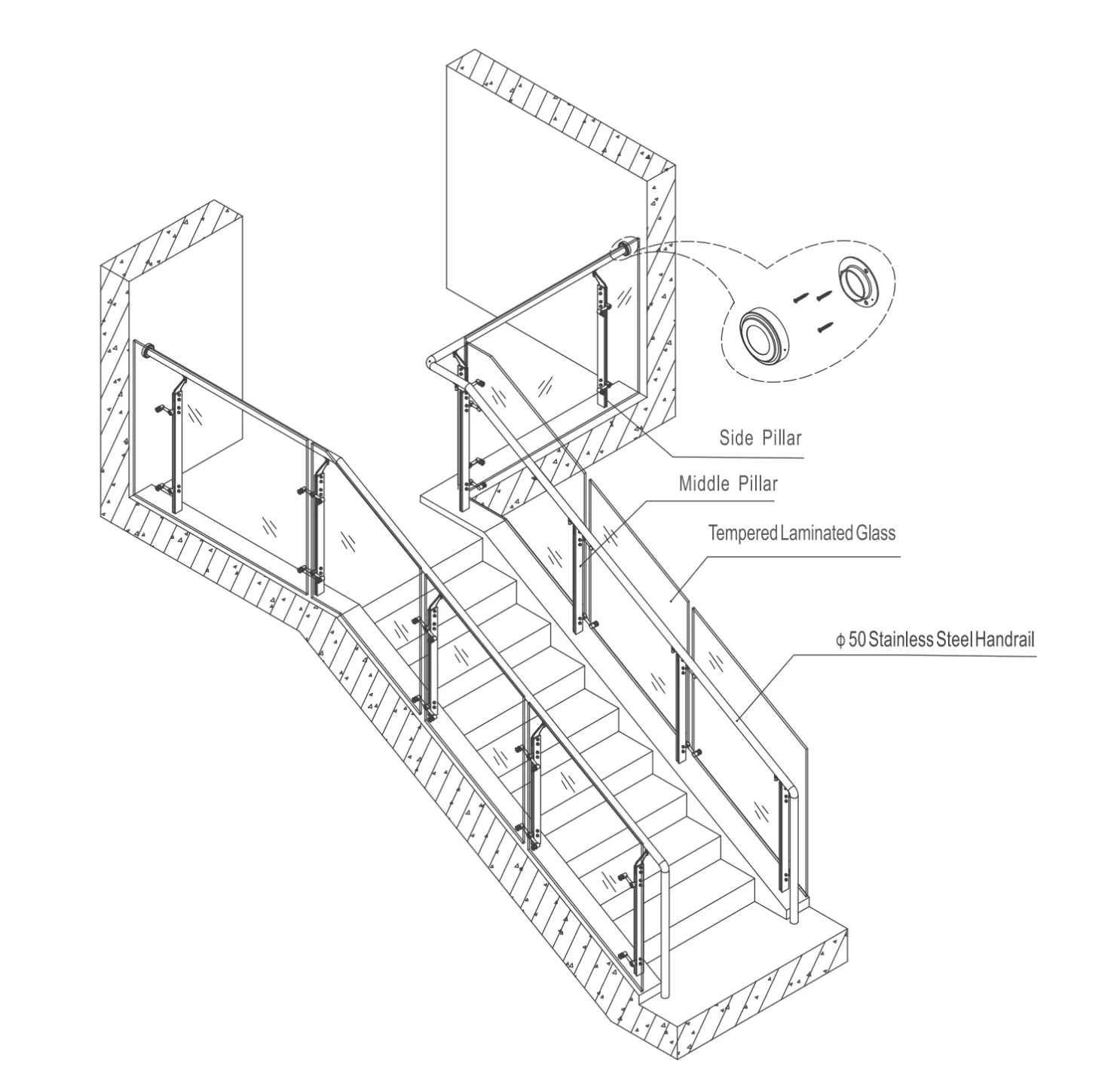

Model 204 is suitable for balcony railings, staircases, terraces, decks, courtyard railings and interior architectural glass railing systems.
Request a Custom Railing Solution
Provide your project dimensions, drawings or technical requirements and let our team develop a suitable configuration.
Contact Us for Custom Design
